ROCKET EXPRESS

FEATURES

Ventless Technology

No need for hoods for operation

Glass Door & Lighted Cavity

Visibly see the cooking progress as the oven works

Temperatures up to 626°F

Separate controls for temp,  air impingement, and bottom IR element

Intuitive User-Friendly Interface

…making it easier to set-up/create recipes

USB Loading Capabilities

…for ease of programming and sharing settings between ovens

Store up to 1,024 Different Recipes

Allowing operators to run a cycle, stop, add new ingredients, and continue cooking cycle when needed

Rocket Express Speed Ovens
ROCKET EXPRESS

TECHNOLOGY

SECURE CONSISTENT RESULTS

With hot air being pushed at high speeds, securing the same result in batch cooking operation.

FITS A HALF-SIZE SHEET PAN

With hot air being pushed at high speeds, securing the same result in batch cooking operation.

EXPRESS COOKING TIMES

Steamed Asparagus in only 60 Seconds

14″ Pepperoni Pizza in only 2 Minutes

Chicken Wings in only 3 Minutes 30 Seconds

Quesadilla in only 35 Seconds

UNIFORM AIRFLOW DISTRIBUTION

Secure and evenly distributed heat ensures a perfect temperature throughout the oven

TOP PERFORMING TEMP CONTROL

Maintains high internal temperatures without increasing room temperature.

USER INTERFACE

ELEGANT & INTUITIVE

Full color capacitative touchscreen display with intuitive software allowing unlimited customized images to expedite your own restaurants workflow

SIMPLE & OPTIMIZED

A fresh spin on providing a great user interface while simplifying the basic oven operations for the end user

ROCKET EXPRESS

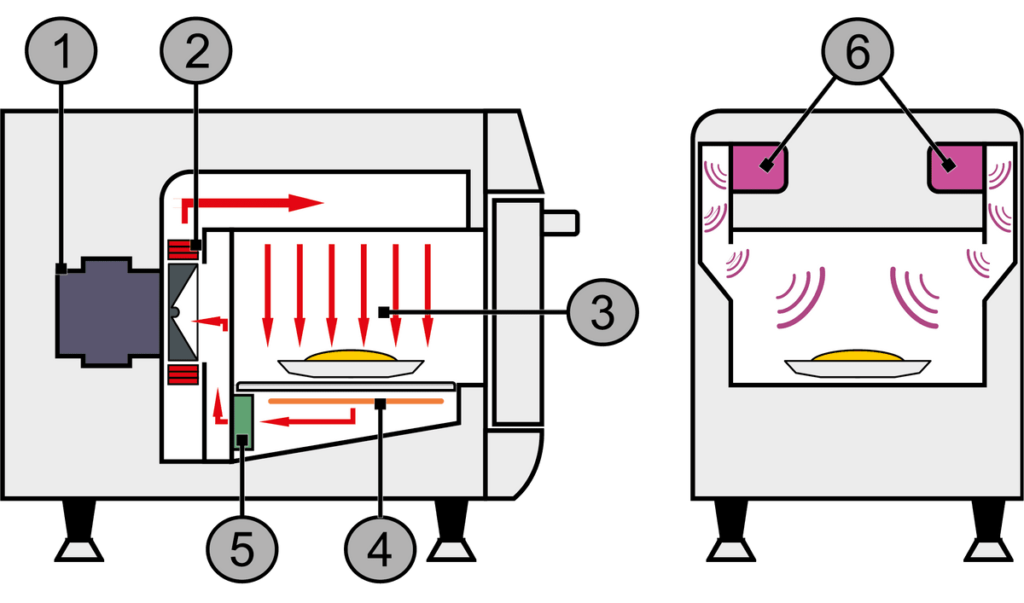

TECHNICALS

1

Blower Motor

2

Impingement Heater

3

Impinged Air

4

IR Heater

5

Catalytic Converter

6

Magnetrons

ROCKET EXPRESS

TECH SPECS

Region

USA / Canada

Voltage (V)

208 / 240

Phases

Single

Freq. (Hz)

60

Power (kW)

6.2 / 7.2

Circuit Breaker (A)

30

Cable

3×10 AWG

Socket

   NEMA 6-30

Product Dimensions

(Height x Width x Depth)

25 116 x 21 x 31 34

636 x 532 x 806 (mm)

194 lbs. | 88kg

Boxed Dimensions

(Height x Width x Depth)

34.1 x 25.2 x 36.2 (“)

865 x 640 x 920 (mm)

250 lbs. | 113.3 kg

Chamber Dimensions

(Height x Width x Depth)

5 3⁄4 x 15 12 x 14 14(“)

146 x 394 x 362 (mm)

0.74 cu.ft. | 21L

ROCKET EXPRESS

FEATURES

VENTLESS

No hoods needed for operation

Catalytic Converter technology turns grease-laden vapor into water, allowing the oven to operate with no need for exhaust hoods. A removable catalytic converter allows operators to perform the cleaning without the need for a maintenance service call.

VERSATILITY

Operates in any environment

Removable filters that are easy to clean. A removable filter allows operators to perform the cleaning without the need for a maintenance service call. Perfect for small, medium, and large businesses.

ROCKET EXPRESS

INCLUDED ACCESSORIES

ALUMINUM PADDLE

ALUMINUM PANINI PLATE

NON-SCRATCH SPONGE PAD

PERFORATED BASKET

SOLID BASKET

USB DRIVE

OVEN PROTECTOR

OVEN CLEANER

ROCKET EXPRESS

FILES

BROCHURE

MANUAL

SPEC SHEET

CAD DRAWINGS
